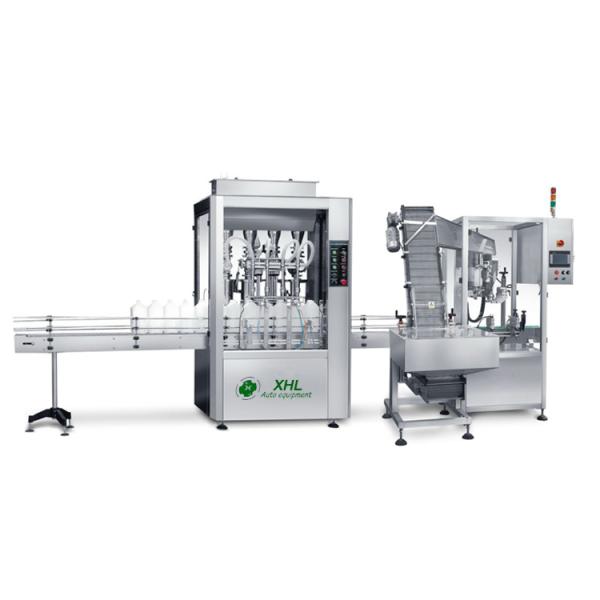

Overview of production line
The series of products are mainly used for filling ofdialysate, reagents and raw materials in such industries asmedicine, biology, chemical industry, etc. The wholeproduction process conforms to the new version GMP requirements. The production line inherits internationallyadvanced technology, and incorporates various patentedtechnologies with independent intellectual property rights. It has reached the advanced level and can replace similarimported products. The production line is also suitable forhigh- end large barrel flling in other industries.
Main features
- It adopts the weighing type filling principle to ensure that the liquid is free from contamination. The filing accuracy is high. In applications where the requirements are not high,the self-flow type or negative pressure type filling principle can be adopted.
- The filling system is provided with the anti-leaking device, realizing filling from the bottom of the bottle, rising slowly and avoiding bubbles.
- The filling volume is adjusted on the man-machineinterface with simple operation and fast adjustment.
- During bottle washing, the robot arm is adopted to grabthe bottle, make the bottle mouth face downward forwashing, and swing the bottle to the left, right, front andback at different angles to let the residual water in thebottle flow out.
- During cap turning, the mechanical hand is adopted forcap taking, and the three-gripper pneumatic cap turninghead is adopted for cap turning. Driven by servo motor with adjustable torque.
- It can be equipped with a stoppling mechanism.
- The whole line adopts the PLC control system with variable frequency speed control and high degree Oautomation.
- The whole line adopts linear bottle moving. In order tosave space, the rotary bottle moving mode can also beadopted.
- The whole line is designed according to GMP requirements.
- The whole line can complete illing, case packing,palletizing, etc, only requiring 1-3 people for operation.
Main Technical Parameters
| product Model | XPD/1 WLCZ/12 XGD/1 | XP/3 WLCZ/24 GXG/2A |
| Stable production capacity(taking 10L tank as an example) | 15-20BPM | 60BPM |
| Filling range | 1-15L |
| Number of bottle washing robots | 1 | 3 |
| Residual water volume | ≤±0.1% |
| Bottle moving mode | Linear intermittent type | Continuous Rotary Type |
| Number of filling heads | 12 | 24 |
| Number of cap pressing heads | 1 | 2 |
| Number of cap turning heads | 1 | 2 |
| Filling accuracy | ≤±0.1% |
| Pressing and turning pass rate | ≥99.9% |
| Power supply | 220/380V 50/60Hz |
| Power | ≤10kw | ≤15kw |
| Air Pressure | 0.4-0.6MPa |
